胶水灌装机

Time:2000-11-25人气:195

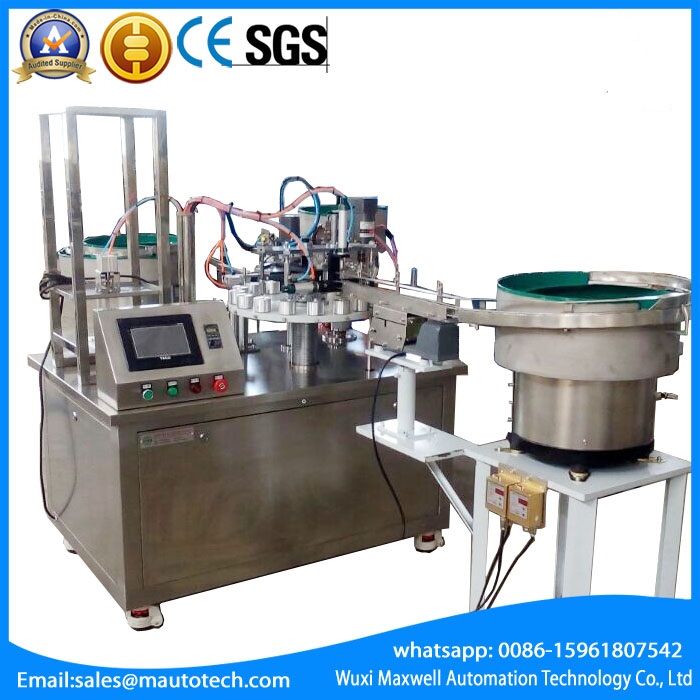

502胶全自动灌装旋盖机



产品介绍 Introduction

胶水灌装旋盖机适用于0.5~150ml的圆形,异形塑料瓶或玻璃瓶的胶水的自动灌装、上盖、压盖、旋盖。具有定位准确,传动平稳,计量准确,简单等优点。灌装不滴漏,具有无瓶不灌装功能;采用PLC可编程控制,触摸摸屏人机界面系统,操作简单方便。该机适用于适用于批量生产各种液体灌装的产品,并能自动上盖上塞及旋盖。

Glue filling and capping machine is suitable for automatic filling, capping, capping and capping of 0.5~150ml round, special-shaped plastic bottles or glass bottles of glue. It has the advantages of accurate positioning, stable transmission, accurate measurement and simplicity. The filling does not drip and has the function of no bottle no filling; PLC programmable control, touch screen man-machine interface system, simple and convenient operation. This machine is suitable for mass production of various liquid filling products, and can automatically cover, plug and screw caps.

该机有灌装机构,上内塞机构,上外塞机构,上内盖,旋盖机构,上外盖机构,压外盖机构,顶出机构,主传动机构等组成.

The machine is composed of filling mechanism, upper inner plug mechanism, upper outer plug mechanism, upper inner cover, screw cap mechanism, upper outer cover mechanism, outer cover pressing mechanism, ejection mechanism, main transmission mechanism, etc.

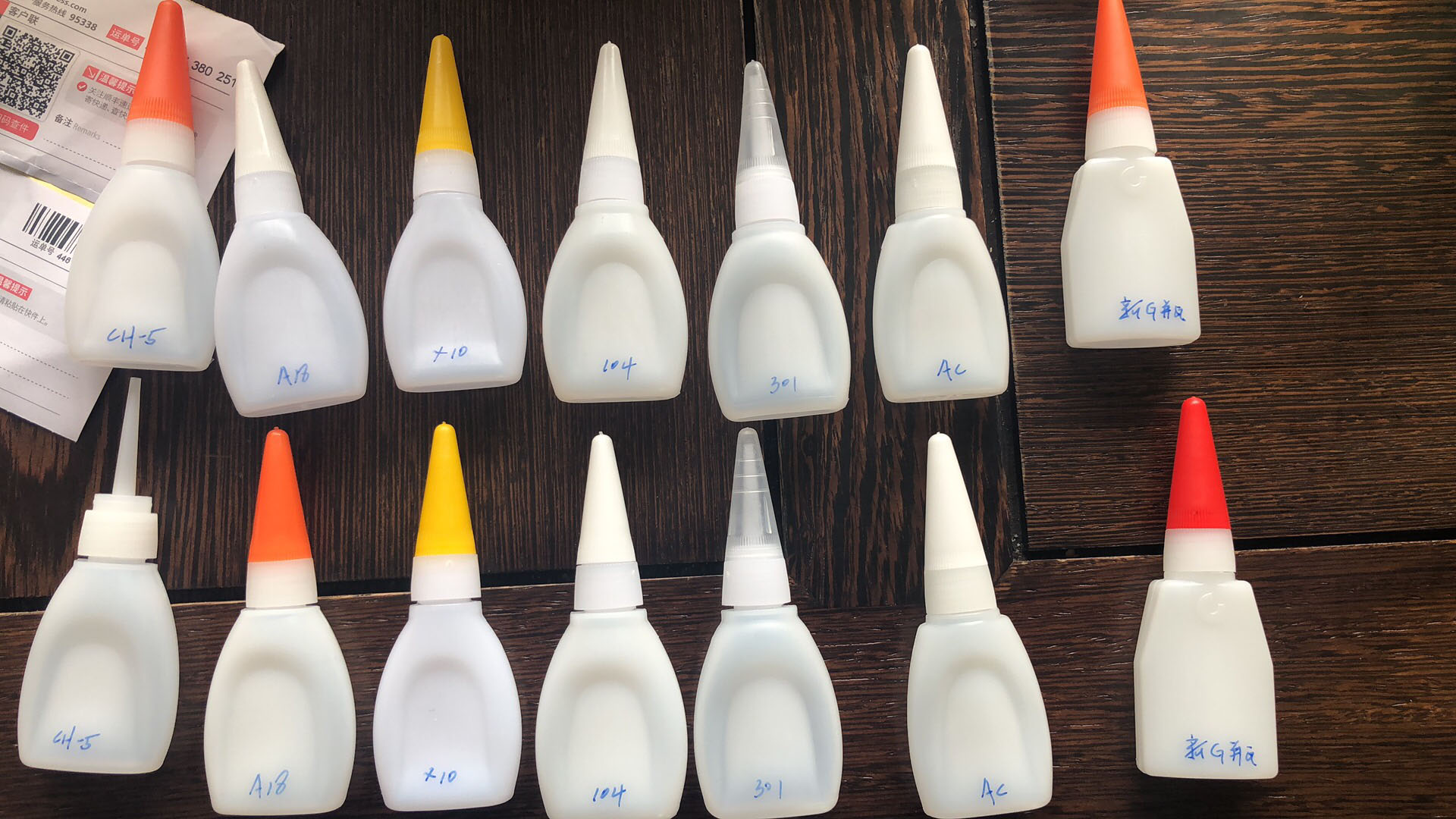

用途液体胶水,以及类似产品 和包装器材。

Uses: super glue, and similar products and packaging equipment.



工作流程 人工把瓶子放入振动盘,振动盘震动理瓶供瓶然后自动灌装,接着自动供盖旋盖,最后顶杆把瓶子从工位推出。

Working process: Manually put the bottle into the vibrating plate, the vibrating plate vibrates the bottle to supply the bottle, and then automatically fills, then automatically caps and caps, and finally the ejector pin pushes the bottle out of the station.

特点: 机器PLC控制,触摸屏人机界面,工作过程依靠现代化光电和机械动作配合完成, 机器工作稳定可靠,

Features: The machine is controlled by PLC, touch screen man-machine interface, the working process is completed by the cooperation of modern photoelectric and mechanical actions, and the machine is stable and reliable.



技术参数Spec.

电源Voltage           220V  1P 50HZ

功率Power             3KW

压缩空气compressed air 0.4-0.7MPa

瓶子尺寸bottle size   定做customized

灌装量Filling dose    0.5-10g  (定做)

速度Speed            30-50 瓶/min

尺寸Dimension        1700*2000*1600mm

重量Weight            650KG
